[shortdesc]

• Switch, L3, Managed, 8 × 10/100/1000 (PoE/PoE+/4PPoE) + 3 × 10G/1G SFP+ uplinks, 480 W PoE, IP30 rugged, fanless, DIN-rail, modular expansion

[/shortdesc]

[properties]

Property	Details
Product Line	Cisco Catalyst IE3500 Rugged Series
Use Case	Industrial / harsh environments (IP30; −40°C to +75°C; fanless)
Management	Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support	PoE/PoE+/4PPoE
Layer Support	Layer 2 & Layer 3
Scalability	Modular expansion up to 27 ports via IEM modules
Operating System	Cisco IOS XE
Software Licence	Network Essentials
Form Factor	Ruggedized, fanless, DIN-rail (IP30)
Default Power Supply	External DIN-rail PSU; dual DC inputs (12–54 VDC), ordered separately

[/properties]

[specifications]

Specification	Details
Model Number	IE-3500-8U3X-E
Port Count	11 (8 × 10/100/1000 + 3 × 10G/1G SFP+)
Downlink Ports & Speeds	8 × 10/100/1000 Mbps RJ45 (PoE/PoE+/4PPoE)
Uplink Ports & Speeds	3 × 10G/1G SFP+
PoE Power Budget	480 W
Switching Capacity	—
Forwarding Rate	Line-rate on all ports (all packet sizes)
Stacking Bandwidth	—
DRAM	8 GB
Flash Memory	5.1 GB
MAC Address Table Size	24,000 entries
VLAN Support	4096 VLAN IDs (up to 1024 active)
Power Requirements	Dual DC input 12–54 VDC (9.6–60 V absolute); ~49 W consumption (excl. PoE)
Dimensions (H × W × D)	6.00 × 4.38 × 5.29 in (15.24 × 11.13 × 13.44 cm)
Weight	5.05 lb (2.29 kg)
MTBF	474,807 hours

[/specifications]

[accesories]

Mounting accessories

SKU / Part Number	Description
STK-RACK-DINRAIL=	19” DIN rail rack mount kit

Management & storage

SKU / Part Number	Description
SD-IE-16GB=	IE 16GB SD memory card for configs/logs/firmware
—	RJ-45 console cable for CLI access (device has RJ-45 and USB-C console ports)

Licenses & subscriptions

SKU / Part Number	Description
IE3500-NW-A=	Network Advantage perpetual license (feature upgrade)
IE3500-DNA-E-3Y	Cisco DNA Essentials 3-Year term
IE3500-DNA-E-5Y	Cisco DNA Essentials 5-Year term
IE3500-DNA-E-7Y	Cisco DNA Essentials 7-Year term
IE3500-DNA-A-3Y	Cisco DNA Advantage 3-Year term
IE3500-DNA-A-5Y	Cisco DNA Advantage 5-Year term
IE3500-DNA-A-7Y	Cisco DNA Advantage 7-Year term

Cabling & connectors

Item	Details
Cat5e/Cat6/Cat6A RJ-45 patch cable	Data cable for 8× mGig UPoE downlink ports (1G/2.5G, PoE/UPoE)
SFP+/SFP fiber patch cord (LC)	Data cable for 3× 10G/1G SFP+ uplinks

SFP+/10G transceivers & DAC

SKU / Part Number	Description
SFP-10G-SR / SFP-10G-LR / SFP-10G-LRM / SFP-10G-ER / SFP-10G-ZR	10G SFP+ optics
SFP-10G-SR-I / SFP-10G-ER-I	Industrial-temp 10G SFP+ optics
SFP-H10G-CU1M / SFP-H10G-CU3M / SFP-H10G-CU5M	Passive 10G DAC cables
SFP-10G-T-X	10GBASE-T SFP+ (may reduce PTP performance)
CWDM-SFP10G-xxxx / DWDM-SFP10G-xxxx	CWDM/DWDM 10G SFP+ optics (various wavelengths)

GE/1G SFP transceivers (uplinks support 1G as well)

SKU / Part Number	Description
GLC-SX-MM-RGD= / GLC-LX-SM-RGD= / GLC-ZX-SM-RGD=	Industrial GE SFPs (SX/LX/ZX)
SFP-GE-S / SFP-GE-L / SFP-GE-Z / GLC-BX-U= / GLC-BX-D= / GLC-EX-SMD= / GLC-ZX-SMD=	GE SFPs (SX/LX/ZX/BiDi/EX)
GLC-TE= / GLC-T= / GLC-T-RGD=	1G copper SFPs (note: may reduce PTP performance)
CWDM-SFP-xxxx= / DWDM-SFP-xxxx=	CWDM/DWDM 1G SFP optics

Expansion modules (optional)

SKU / Part Number	Description
IEM-3500-8P=	8× PoE/PoE+ copper expansion module
IEM-3500-16P=	16× PoE/PoE+ copper expansion module
IEM-3500-8S=	8× 1G/100M SFP fiber expansion module
IEM-3500-8T=	8× copper expansion module
IEM-3500-16T=	16× copper expansion module
IEM-3500-6T2S=	6× copper + 2× 1G/100M SFP expansion module
IEM-3500-14T2S=	14× copper + 2× 1G/100M SFP expansion module
IEM-3500-4MU=	4× 2.5G copper (4PPoE) expansion module (PoE host required)

Power supplies (DIN-rail; select capacity per PoE/UPoE load)

SKU / Part Number	Description
PWR-IE65W-PC-AC= / PWR-IE65W-PC-DC=	65W PSU (PoE-capable)
PWR-IE170W-PC-AC= / PWR-IE170W-PC-DC=	170W PSU (PoE-capable)
PWR-IE240W-PCAC-L=	240W AC PSU (PoE-capable)
PWR-IE480W-PCAC-L=	480W AC PSU (PoE-capable)

[/accesories]

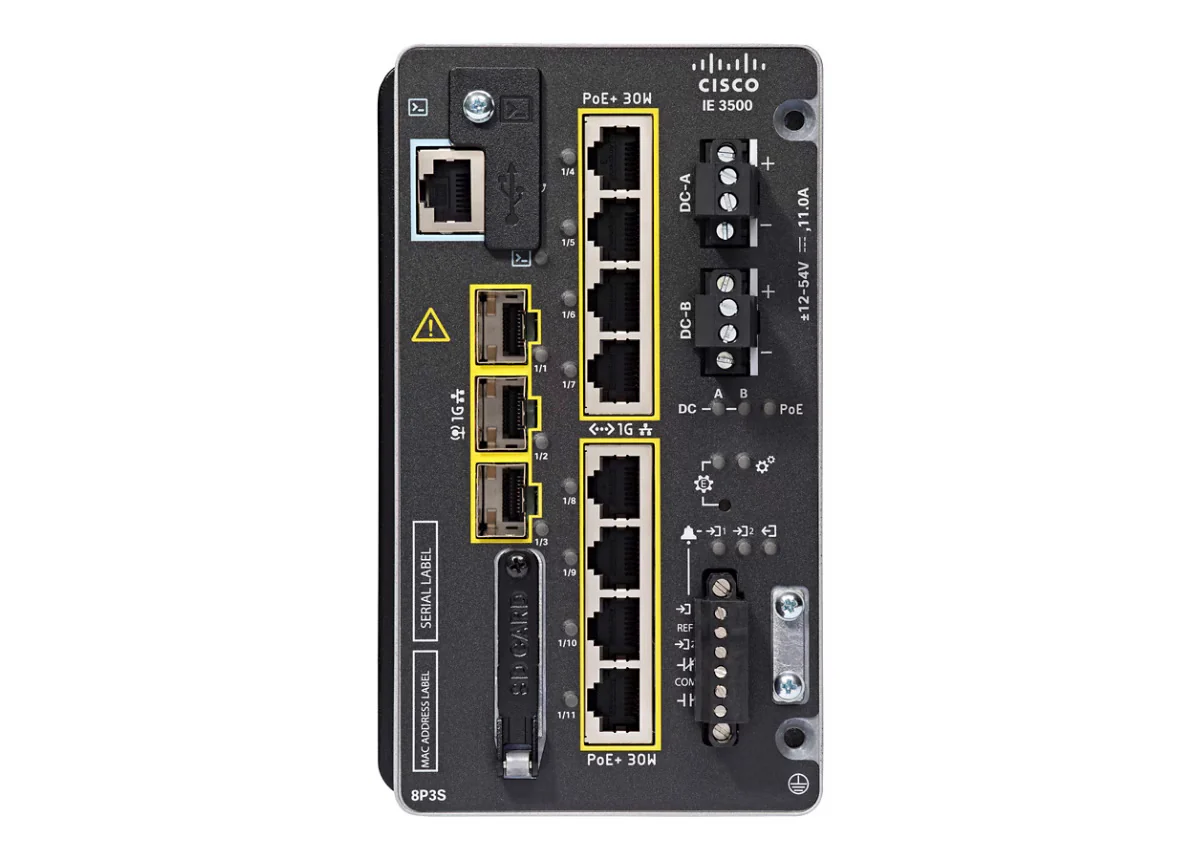

Cisco Catalyst IE-3500-8U3X-E Switch

The Cisco Catalyst IE-3500-8U3X-E Switch is a rugged, high-power industrial Ethernet platform built for harsh OT edge environments. It features 8 Gigabit RJ45 downlinks with PoE/PoE+/4PPoE and 3 high-speed 10G/1G SFP+ uplinks for scalable aggregation, delivering reliable line-rate performance in a compact, fanless IP30 DIN-rail form factor. With a 480 W PoE budget, it powers demanding endpoints such as PTZ cameras, wireless access points, and industrial sensors. Running Cisco IOS XE with the Network Essentials license, it provides foundational Layer 2/Layer 3 capabilities, supports modular expansion via IEM modules (up to 27 ports), and integrates with Cisco Catalyst Center for streamlined operations.

Key Features:

• 8 × Gigabit Ethernet Downlinks with PoE/PoE+/4PPoE: Delivers up to 480 W total PoE budget to power high-draw industrial devices.
• 3 × 10G/1G SFP+ Uplinks: High-speed fiber uplinks for resilient backbone and aggregation connectivity.
• Ruggedized, Fanless Design (IP30, −40°C to +75°C): Reliable operation in harsh industrial conditions with DIN-rail mounting.
• Layer 2 & Layer 3 with Network Essentials: Foundational routing/segmentation features suited for OT/IT convergence (license-dependent).
• Easy Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).

Technical Overview:

• Recommended for: Industrial and OT edge deployments requiring robust PoE/PoE+/4PPoE access and 10G fiber uplinks (IP30, fanless DIN-rail).
• Ports: 8 × 10/100/1000 Mbps RJ45 downlinks with 3 × 10G/1G SFP+ uplinks.
• PoE Budget: 480 W.
• Switching Capacity: —
• Forwarding Rate: Line-rate on all ports (all packet sizes).
• Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
• Security: Feature set aligned with license tier (Network Essentials); see datasheet for details.
• Energy Efficiency: Fanless, low-power operation with typical draw ~49 W (excluding PoE).
