[shortdesc]

Switch
managed
24 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink)
DIN rail mountable

[/shortdesc]

[properties]

Properties	Cisco IE-4010-4S24P
Description	IE4010 with 24GE Copper PoE+ ports and 4GE SFP uplink ports
Product Family	Industrial Ethernet 4000
Product Type	Ethernet Switch
Switches
Total Ports	28
SFP Uplinks	4 FE/GE
SFP fiber ports (S)	-
Copper PoE/PoE+ Ports(P)	24 FE/GE
Default software	LAN Base
Software Features
LAN Base License (Default)	Features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling
Layer 2 multicast	IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Managament	Fast Boot, Express Setup, HTTP Web Config, SmartPort, MIB, SNMP, syslog, Storm ControlUnicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Energywise, PnP, Customized TCAM/SDM size configuration, DOM (digital optical management), Port-based DHCP
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Cisco TrustSec®security, FIPS 140-2, ACT2, Secure Boot, Full flexible Netflow
Quality of Service (QoS)	Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, Modular QoS CLI (MQC),PROFINET QoS
Layer 2 IPv6	IPv6 Host support, HTTP over IPv6, SNMP over IPv6
Layer 3 Routing	IPv4 Static Routing
Utility	Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag)
Industrial Ethernet	CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2 Default Profile
Redundancy	Redundancy Ethernet Protocol ring (REP) Parallel Redundancy Protocol (PRP) Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) High Availability Seamless Redundancy (HSR), PTP over HSR HSR-PRP (Dual RedBox mode) HSR-HSR (Quadbox)
Industrial Management	Layer 2 switching with 1:1 static Network Address Translation (NAT)
Dimensions (HxWxD) Inches	1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250
Weight	12.1 lb (5.46 kg)
Power Supply Weight	PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg) PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg) PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)

[/properties]

[specifications]

Specifications	IE-4010-4S24P
DRAM	1 GB
Flash Memory	128 MB
Hardware
PoE power budget	Not applicable
Removable storage	1-GB removable SD flash memory card (Included) Mini-USB connector
Alarms	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Console ports	RJ-45 connector
Power inputs	Dual DC power inputs
Available power budget for PoE/PoE+ with different power supply wattage
150W	80
150W (dual)	200
250W	180
250W + 150W	285
250W (dual)	385
Number of Queues	4 egress
Forwarding bandwidth	28 Gbps (line rate/non-blocking)
Unicast MAC addresses	16,000
Switching bandwidth	56 Gbps(Switching bandwidth is full-duplex capacity)
No. of VLANs	1,000
Internet Group Managament Protocol (IGMP) Multicast Groups	1000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
Power Consumption	Maximum of 70W not including PoE consumption
Operating Temperature	Operating Temperature: -40C to +75C -40C to +70C (Vented Enclosure - 40 LFM Air Flow) -40C to +60C (Sealed Enclosure - 0 LFM Air Flow) -34C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow) -40C to +85C (IEC 60068-2-2 Environmental Type Testing, 16 hours) Operating altitude: Up to 13,800ft EN 60068-2-1, EN 61163
Storage Temperature	-40 C to +85 C
Operating Altitude	Up to 13,800 feet
Storage Altitude	15,000 feet
Mean Time Between Failures (MTBF)	429,620 hours
Industrial Automation Control System	IEC 62443-4-1 IEC 62443-4-2
Electromagnetic emissions	FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A EN 300 386 CNS 13438 Class A
Electromagnetic immunity	EN55024 CISPR 24 AS/NZS CISPR 24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips
Industry standards	EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Communication networks for power utility automation EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock PROFINET conformance B IP30 NEMA TS-2 (EMC, environmental, mechanical)
Safety standards and certifications	Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 UL 61010-2 CSA C22.2, No 142 Hazardous locations: Class 1, Div2, gas groups IIC ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) (Cabinet enclosure required)
Humidity	Relative humidity of 5% to 95% noncondensing IEC 60068-2-3 IEC 60068-2-30
Shock and vibration	IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration)
Corrosion	ISO 9223: Corrosion class C3-Medium class C4-High EN 60068-2-52 (Salt Fog) EN 60068-2-60 (Flowing Mixed Gas)

[/specifications]

[accesories]

Accessories and License Upgrade PIDs
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features)
L-IE4000-RTU=	IE4010 Electronic software license upgrade from LAN base L2 to IP Services L3 features
LIC-MRP-Manager=	MRP ring manager license
LIC-MRP-Client=	MRP ring client license
SD-IE-1GB=	IE 1GB SD Memory Card - Spare
Cisco ONE„¢Licenses
C1F1PIE4K5K1K9	Cisco ONE Foundation Lite Perpetual Includes Prime Infrastructure (LF and AS), Identity Services Engine - Base
C1F1PIE40001K9	Cisco ONE Foundation Perpetual Includes Full flexible Netflow, Stealthwatch, Prime Infrastructure, and Identity Services Engineer - Base
C1A1PIE40001K9	Cisco ONE Advanced Perpetual Includes IP Services
C1-FLOW-IE4K	Cisco ONE Netflow IE4000
C1A1AIE40001K9	Cisco ONE Advanced Perpetual - IE 4000
C1F1AIE40001K9	Cisco ONE Foundation Perpetual - IE 4000, BROWNFIELD
C1F1AIE4K5K1K9	Cisco ONE Foundation Lite Perpetual - IE 4000/5000
C1F1PIE40001K9	Cisco ONE Foundation Perpetual - IE 4000
Cisco IE 4010 Cisco DNA licenses
IE4010-DNA-E-H	Cisco DNA Essentials license
IE4010-DNA-E-H-3Y	Cisco DNA Essentials 3-year term license option
IE4010-DNA-E-H-5Y	Cisco DNA Essentials 5-year term license option
IE4010-DNA-E-H-7Y	Cisco DNA Essentials 7-year term license option
IE4010-DNA-A-H	Cisco DNA Advantage license
IE4010-DNA-A-H-3Y	Cisco DNA Advantage 3-year term license option
IE4010-DNA-A-H-5Y	Cisco DNA Advantage 5-year term license option
IE4010-DNA-A-H-7Y	Cisco DNA Advantage 7-year term license option

[/accesories]

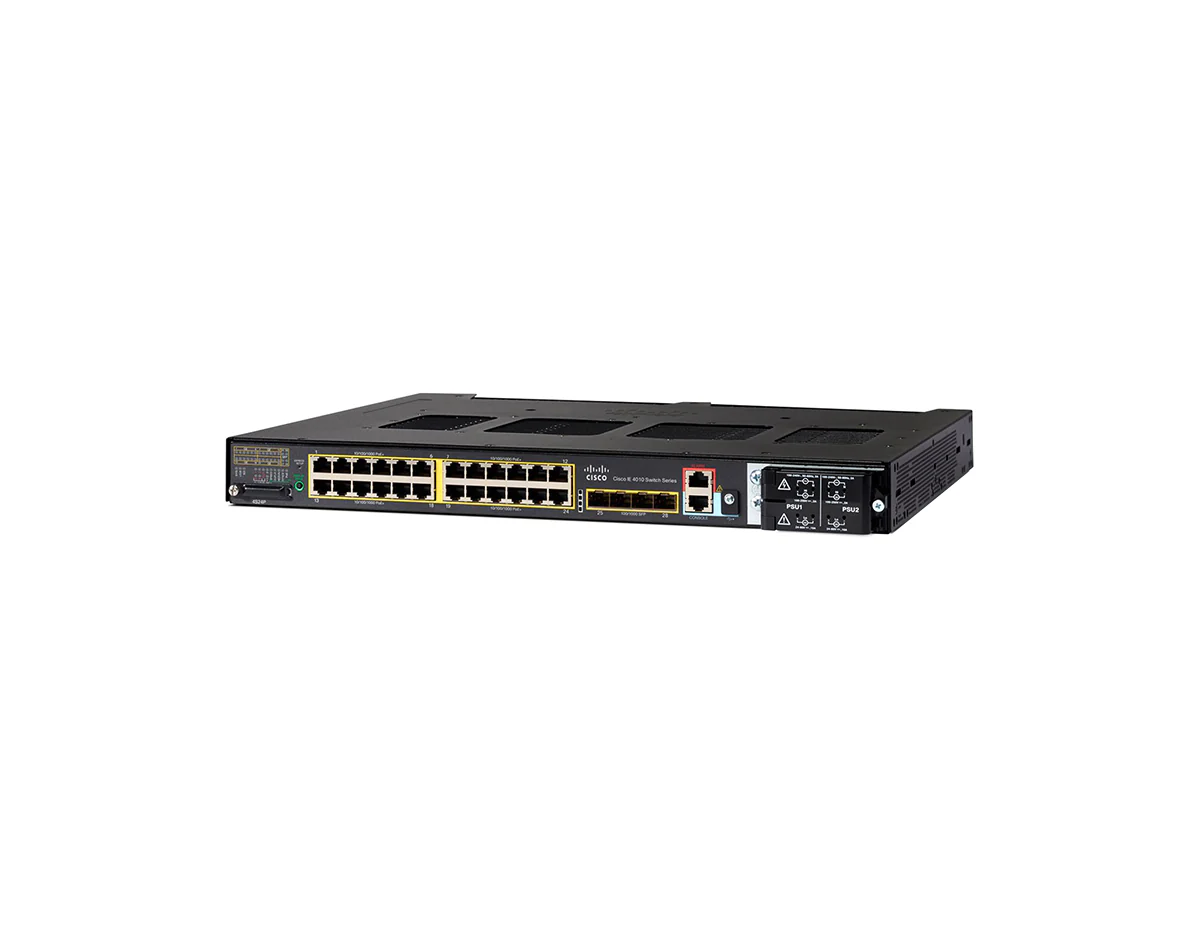

Cisco IE-4010-4S24P Industrial Ethernet Switch

The Cisco IE-4010-4S24P is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and demanding environments. This switch features 4 SFP ports and 24 PoE+ Gigabit Ethernet ports, making it an ideal solution for connecting and powering critical industrial devices such as IP cameras, sensors, and controllers. The IE-4010-4S24P is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

4 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
24 x Gigabit PoE+ Ports: Delivers power and high-speed data connectivity to PoE-enabled devices, reducing the need for additional power supplies.
Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.

Technical Overview:

Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with PoE+ support, advanced management, and high availability.
Ports: 4 x SFP ports, 24 x Gigabit PoE+ ports.
Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-4010-4S24P datasheet.
