[shortdesc]

Compatible with third-party access management software and hardware, Controls up to 2 wired doors and integrates with wireless lock technologies, 2x2 supervised inputs/outputs 12 V DC output for connected devices.

[/shortdesc]

[properties]

Product Name	AXIS A1601 Network Door Controller
Description	The AXIS A1601 Network Door Controller is a high-performance access management solution designed for scalable installations. With an open-platform design, it supports integration with third-party software and hardware, making it ideal for multi-site systems. PoE+ support and compatibility with wired and wireless locks provide flexibility and efficiency in access control.
Compatibility	Compatible with third-party access management software and hardware
Power Supply	Power over Ethernet (PoE+) IEEE 802.3at, 10.5–28 V DC, with backup battery support
Reader Support	Supports up to 2 RS485 (OSDP) or Wiegand readers
Lock Compatibility	Controls wired and wireless locks, managing up to 2 doors
I/O Interface	Provides multiple 12/24 V DC outputs (2 × 12/24 V for locks and 1 × 12 V aux output)
Security Features	Tamper detection, encrypted communication, and HTTPS support
Integration Standards	ONVIF Profile A and C compliant for integration with video and intrusion systems
Event Log Capacity	Stores up to 100,000 events in FIFO mode for reliable logging
Credential Storage	Unlimited credentials with third-party software; up to 70,000 stored locally
Dimensions	175 x 175 x 60 mm (6 7/8 x 6 7/8 x 2 3/8 in)
Weight	1.2 kg (2.6 lb)
Installation Type	Plug-and-play with PoE+ for easy installation
Color	Axis standard white finish for professional installations
Usage	Ideal for multi-site installations in corporate and industrial settings
Compliance	RoHS and REACH compliant, CE certified
Reliability	Tested for continuous operation in diverse environmental conditions

[/properties]

[specifications]

Supported Protocols	TCP/IP, HTTPS, SNMP, ONVIF Profile A and C
Data Security	Tamper detection, HTTPS, and encrypted communication for secure data transfer
Power Consumption	Max power consumption 24 W with PoE+ connection
Reader Interface	Supports up to 2 RS485 (OSDP) or Wiegand readers for flexible access control
Temperature Range	Operational from -40 °C to 55 °C (-40 °F to 131 °F) in diverse conditions
Humidity Range	Designed to operate in humidity levels up to 20–85 % RH (non-condensing)
Material Composition	Durable materials for secure, long-term use in access control systems
Backup Support	Supports backup battery for uninterrupted access control
Firmware Updates	Supports secure firmware updates to maintain security
Installation Compatibility	Fits standard network cabinets and wall mounting setups
Reliability Rating	MTBF rating for high reliability in continuous operation
Environmental Safety	RoHS 3 compliant (Directive 2015/863/EU)
Maintenance	Minimal maintenance, suitable for long-term operation with low servicing needs
Noise Level	Silent, fanless design for indoor installation
Log Retention	Stores up to 100,000 events in FIFO mode for audit trails
Color Consistency	White finish to match Axis equipment aesthetics
Compliance Standards	CE, FCC, UL certified for security installations
Data Processing	Optimized for handling large volumes of credentials and events
Mounting Options	Supports wall and network cabinet mounting for secure placement
Firmware Compatibility	Remote firmware updates supported for enhanced security

[/specifications]

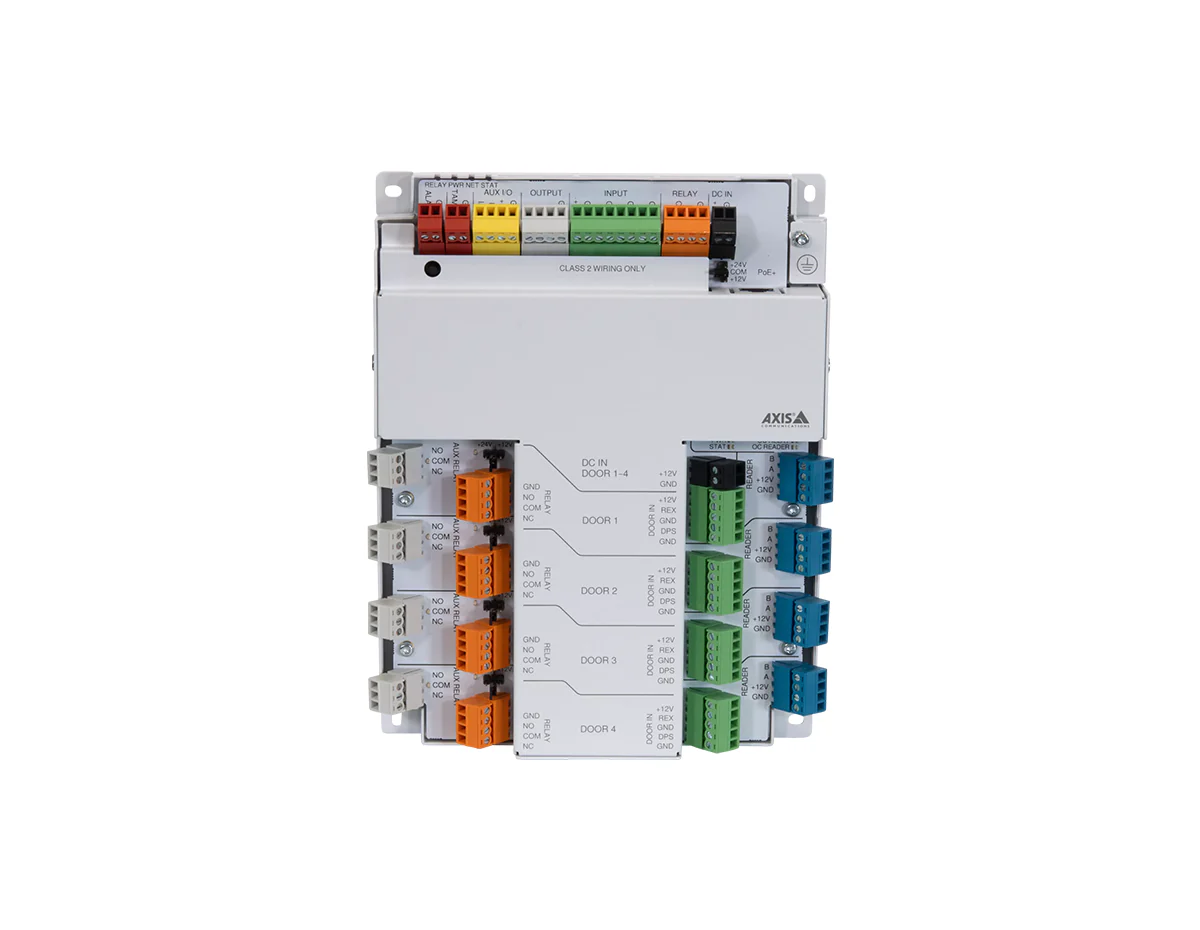

AXIS A1601 Network Door Controller

The AXIS A1601 Network Door Controller is an advanced, open-platform access management solution designed for midsized to large installations. This high-performance controller enables seamless integration with third-party software and hardware, providing a scalable and future-proof access control system. It is ideal for multi-site installations that require a reliable, flexible, and secure system. Featuring Power over Ethernet (PoE+) support, the AXIS A1601 can power connected devices, minimizing cabling requirements. It supports up to two readers and can manage wired and wireless locks, offering an efficient and comprehensive access management solution.

Key Features:

Open Platform: Compatible with third-party access management software and hardware, offering flexibility in system design.
PoE+ Support: Powers the controller and connected equipment with a single Ethernet cable, simplifying installation.
Support for Wired and Wireless Locks: Controls up to 2 wired doors and integrates with wireless lock technologies.
Advanced Security: Includes tamper detection, encrypted communication, and HTTPS support for enhanced security.
Seamless Integration: ONVIF Profile A and C compliant, allowing easy integration with video surveillance and intrusion detection systems.

Technical Specifications:

Reader Compatibility: Supports up to 2 RS485 (OSDP) or Wiegand readers
Credential Storage: Unlimited credentials with third-party software, up to 70,000 stored locally
I/O Interface: 2x2 supervised inputs/outputs, 12 V DC output for connected devices
Power: PoE+ IEEE 802.3at, 10.5–28 V DC, backup battery support
Event Log: Stores up to 100,000 events in FIFO (First In, First Out) mode
Operating Conditions: -40 °C to 55 °C (-40 °F to 131 °F)
Dimensions: 175 x 175 x 60 mm (6 7/8 x 6 7/8 x 2 3/8 in)
Weight: 1.2 kg (2.6 lb)

For more information about the AXIS A1601 Network Door Controller, visit the Axis product page.

This product has reached its end-of-life. The recommended replacement model is A1610 (02653-001)
